webertherm FT - FrameTec System

Thumbnail

webertherm FT is the stand-off rail to provide the weather defence cavity recommended by the NHBC when using External Wall Insulation with metal frame construction.

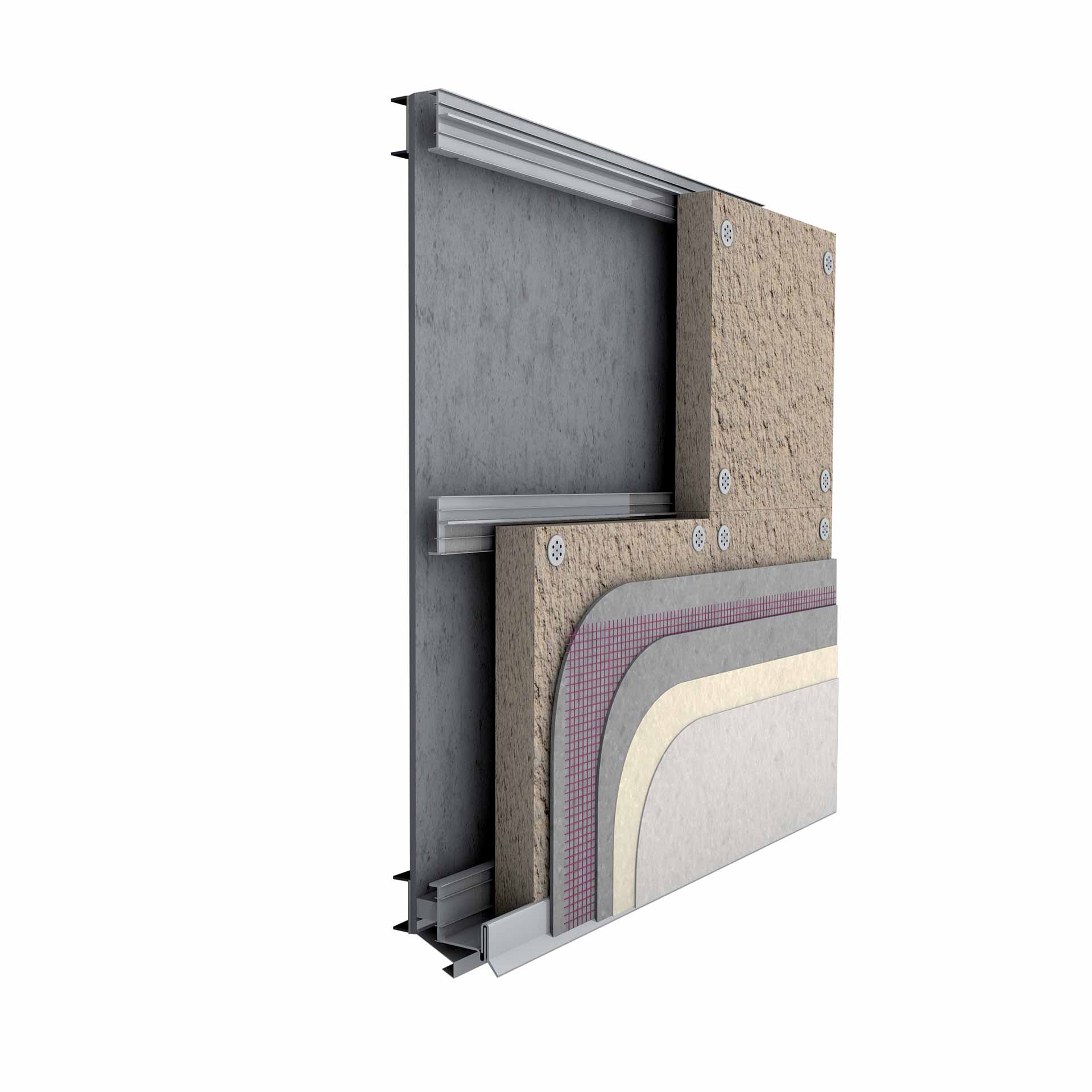

System Build-Up

webertherm FT
Decorative Finish

A range of decorative finishes are available in a wide range of colours to finish your webertherm XM system, including:

weber PR310 Primer

Prime the surface with weber PR310 to reduce suction before applying the decorative finish.

If using weberend LAC rapid as the render coat, priming with weber PR310 is not required.

Lightweight Adhesive Render Coat

webertherm M1

Use

weberend LAC - polymer-modified lightweight adhesive render coat

or

weberend LAC rapid -  rapid drying, polymer-modified lightweight adhesive render coat

A one-coat, through-coloured mineral render for use with webertherm XP external wall insulation system.

Available in 23 colours, various textures and finishes can be achieved including scrape, dry-dash and spray textured finishes.  Details such as light ashlars and quoins can be incorporated.

Find out more...

weber standard meshcloth

weber standard meshcloth is a balanced, open weave, alkaline resistant glass fibre meshcloth.

Standard duty

  • Weight 160 g/m2
  • Mesh dimension 3.5 mm x 3.5 mm
  • Size 1m x 50m roll
Lightweight Adhesive Render Coat

Use

weberend LAC - polymer-modified lightweight adhesive render coat

or

weberend LAC rapid -  rapid drying, polymer-modified lightweight adhesive render coat

Rigid insulation board

webertherm MFD is shown here, but a choice of insulation can be specified from a range including:

  • webertherm EPS
  • webertherm MFD
  • webertherm PHS

For more information about our webertherm insulation options

Fixings

A wide range is available to accommodate all insulant thicknesses and substrate types. Fixings are specified on a project by project basis and pull-out values are established to ensure the webertherm FT system is securely fixed back to the substrate.

Beads, trims and flashings

Full system and render only beads are available in polyester powder coated galvanised mild steel or grade 304 austenitic stainless steel in 3 m and 2.5 m lengths. Trims and flashings such as overcills and copings, are available in PPC aluminium in 2.5 m lengths or made to order.

Starter Rail

Supplied in 2.5 metre lengths.

Stand-off Rail

Supplied in 2.5 metre lengths.

About this product

  • For use with External Wall Insulation on both single skin and frame construction
  • Stand-off rail provides the weather defence cavity recommended by the NHBC when using External Wall Insulation with metal frame construction

Features and benefits

  • Corrosion resistant components
  • Fire breaks easily incorporated
  • Jointing tongue for rails ensures horizontal alignment, including corners, minimises cutting and reduces waste
  • Spanning rail able to withstand high wind loads

Things to consider

Do not apply:

  • If frost is forecast within 24 hours of use
  • In damp/wet conditions
  • In temperatures below 5°C or above 30°C
  • On elevations in direct sunlight or where the substrate is hot
