webertherm XP dash system (EPS)

Name: webertherm XP dash system (EPS)
Brand: Weber

Replacement for: webertherm XP261

webertherm XP dash system (EPS) is a modern external wall insulation system which ideal for refurbishment projects to improve thermal performance and reduce interstitial condensation whilst providing the building with a durable dry dash finish.

This system uses expanded polystyrene insulation and is finished with a dry dash render finish which can be finished with a choice of decorative aggregates – ideal for areas of high water or weather exposure.

BBA NSAI B-s1,d0 reaction to fire

Colours

view full palette

Textures

view full palette

Add bookmark Specify this system Consumption calculator Download BIM object

About this system

Our webertherm XP systems are specially designed using a mineral one coat render (webertherm M1) which doesn't require a base coat render. This means faster and more economical application, reducing labour and scaffolding costs. The disruption to the homeowner is minimised considerably.

Suitable for application onto masonry substrates, this system uses cost effective expanded polystyrene insulation (webertherm EPS) and is finished with webertherm M1 with an application of decorative aggregates for a durable dry dash finish.

Use multiple finishes on the same project

This system can be used in conjunction with the webertherm XP scraped system (EPS) for building designs which require a mix of dry dashed and render finishes.

Frequently asked questions

View our frequently asked questions on external wall insulation.

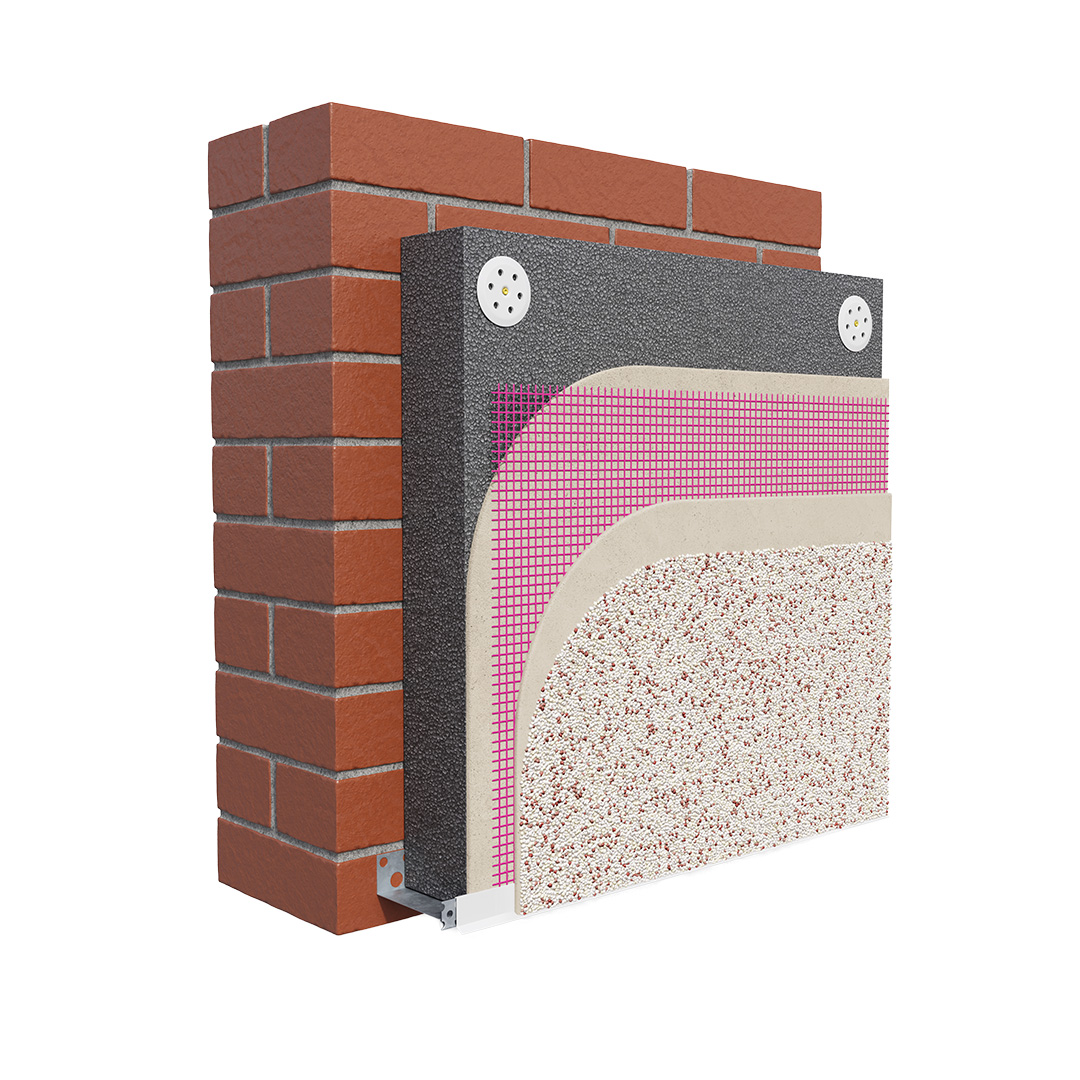

System build-up

Final finish

Durable dry dash finish with a choice of decorative aggregates.

Second pass render

webertherm M1

A one-coat, through-coloured mineral render for use with webertherm XP external wall insulation system. Available in 23 colours, various textures and finishes can be achieved including scrape, dry-dash and spray textured finishes. Details such as light ashlars and quoins can be incorporated.

Find out more...

Reinforcement mesh

weber standard meshcloth

First pass render

webertherm M1

Find out more...

Insulation & fixings

webertherm EPS insulation of selected thickness with Weber fixings as selected for the substrate

Suitable only for buildings under 11 metres. For buildings above 11m, please see webertherm XP dash system (MFD)

Substrate

Sound masonry substrate/background.

Features and benefits

Suitability:

Suitable only for buildings under 11 metres.
For buildings above 11m, please see webertherm XP dash system (MFD).

Final façade finish:

Finished with webertherm M1 with a choice of decorative aggregates.

Reaction to fire:

B-s1,d0 reaction to fire classification in accordance with BS EN 13501. Extended application report on request.

Certification & requirements:

BBA approved, scroll down for certificates.
NSAI approved, scroll down for certificates.
Able to satisfy PAS 2030:2019 and PAS 2035:2019 requirements.

Thermal performance:

Thermal performance for this system varies by substrate and insulation thickness, please refer to the table below or use our U-value Estimator tool for more insulation thickness options.

Substrate	U-value (110mm EPS insulation thickness)	U-value (200mm EPS insulation thickness)
Solid brickwork (215mm)	0.28W/m²K	0.17W/m²K
Solid medium dense blockwork (200mm)	0.27W/m²K	0.17W/m²K
Solid lightweight blockwork (200mm)	0.25W/m²K	0.16W/m²K
Dense concrete (200mm)	0.29W/m²K	0.17W/m²K
Brick (103mm) / Cavity (50mm) / Brick (103mm)	0.26W/m²K	0.16W/m²K
Brick (103mm) / Cavity (50mm) / Medium density blockwork (100mm)	0.24W/m²K	0.15W/m²K

Please note: If more than 200mm of insulation thickness is required, please contact us for more information.

Things to consider

For all substrates there may be a requirement to complete pull-out testing prior to any installation of external wall insulation systems.
Prior to the installation of external wall insulation systems, please contact us.
